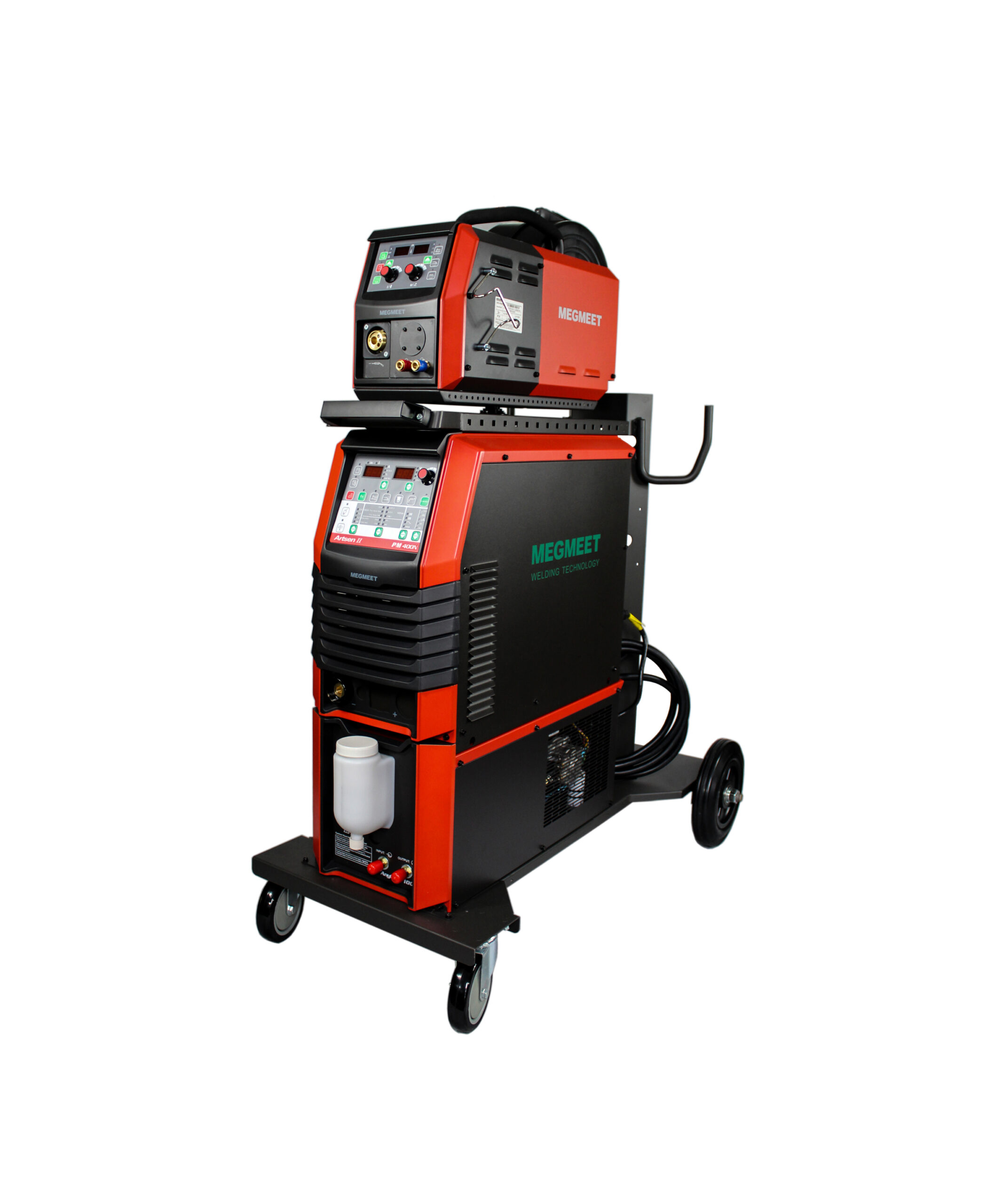

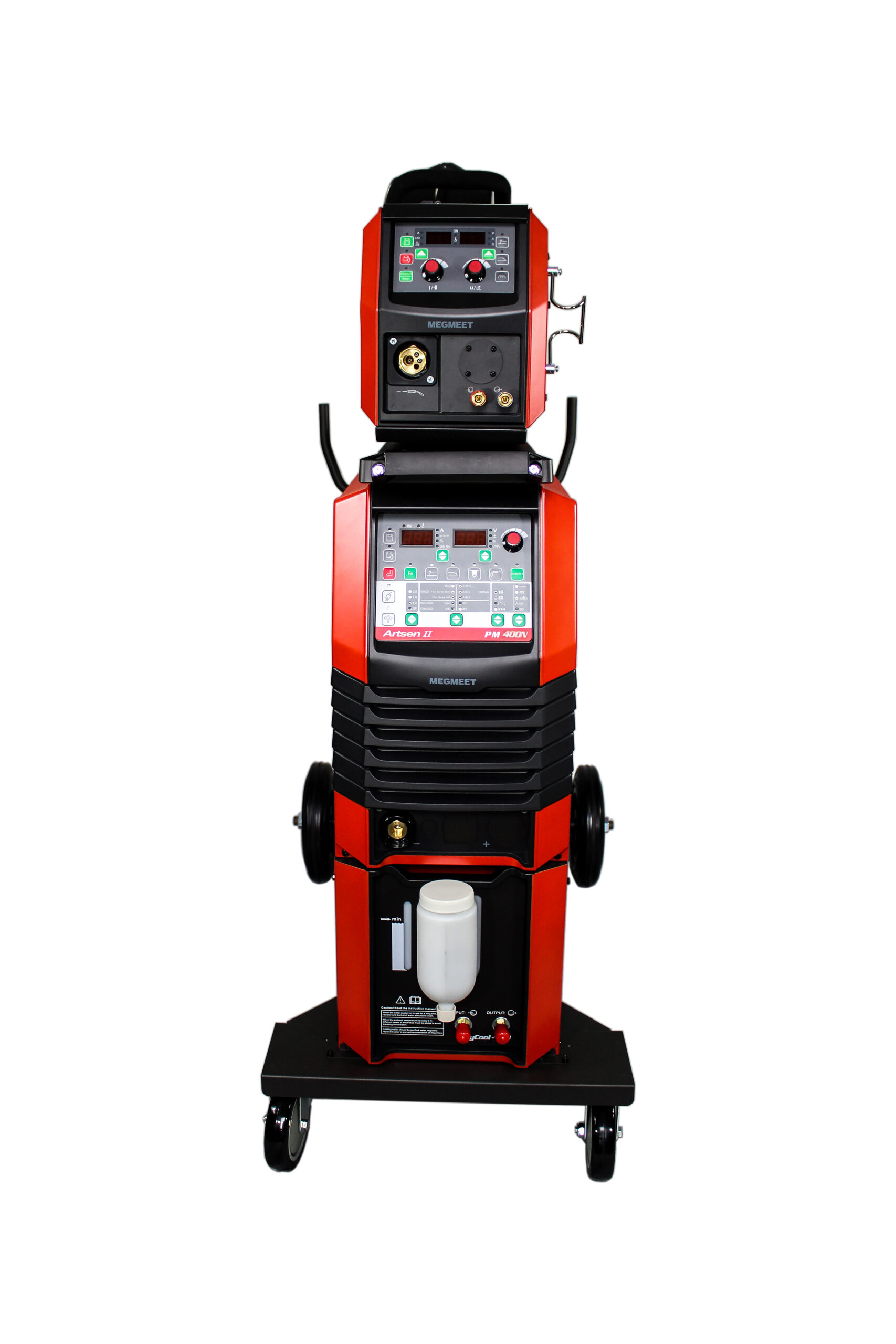

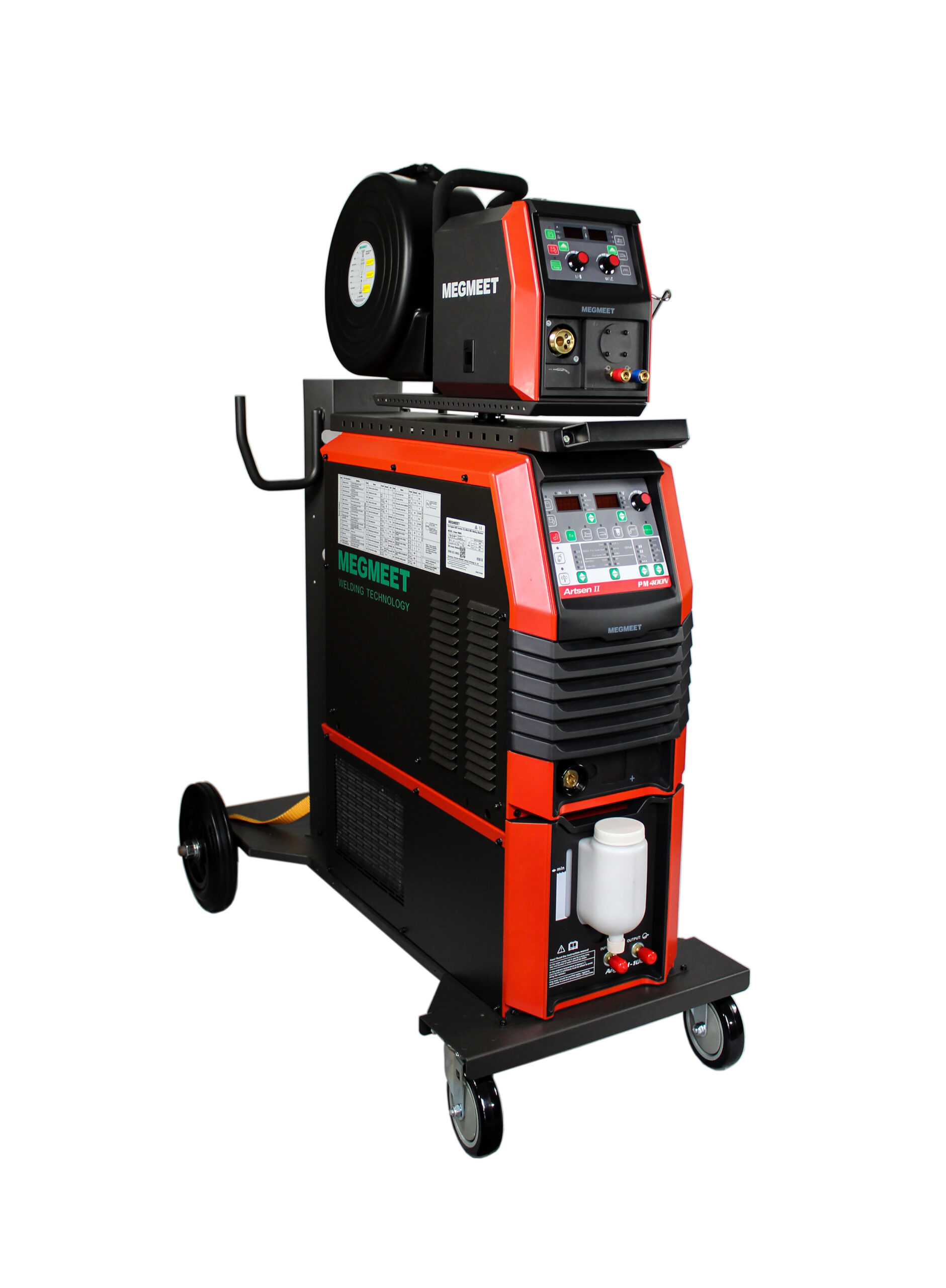

Artsen Ⅱ PM 400N Water Cooled

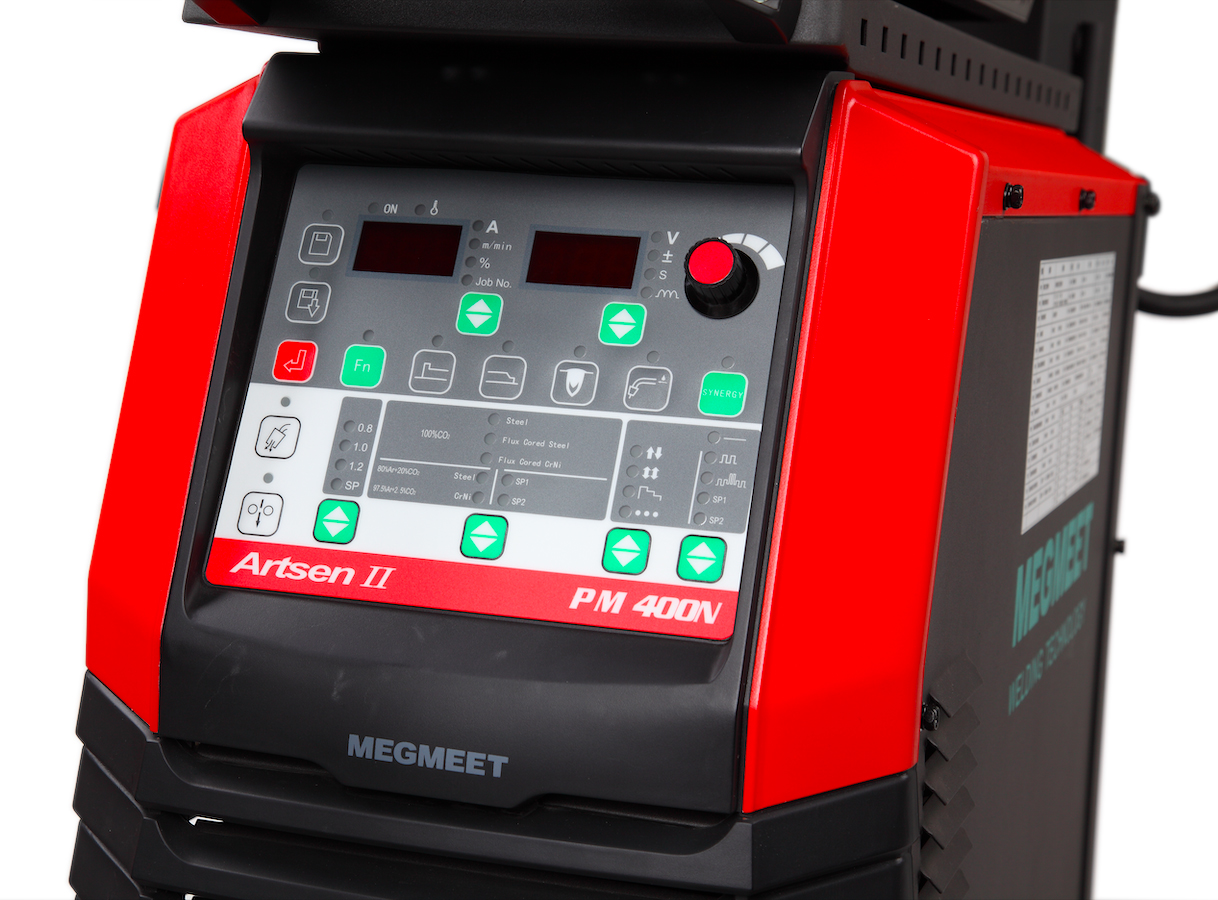

Part Number : R13400693WP Full-function MMA, Single/Double-pulse MIG/MAG Welder for Carbon Steel / Stainless Steel. N= Single / Double pulse Carbon Steel Stainless Steel Independent operation panel and display in the wire-feeder, allowing convenient check and adjustment of welding parameters. Synchronous driving with 2 motors, flexible torch configuration, expansion capability with mid-way wire-feeder and push-pull torch. Practical for welding operation of long distance and in narrow space. Professional performance for materials, including carbon steel, stainless steel, aluminum alloy with DC, Pulsed DC and Double Pulsed DC process. Up to 50 channels with non-delay switch; up to 200 defect records bringing…
Additional information
| Weight | 52 kg |
|---|---|
| Dimensions | 120 × 80 × 115 mm |
| Machine Model | Gas Cooled, Water Cooled |
| Control Mode | Full Digital Control |
| Rated Input Voltage | AC 3PH 380V +/-25% (3PH 285V ~ 3PH 475V) |
| Input Frequency | 30 ~80 HZ |
| Rated Input Power | 19.7 KVA/18 KW |
| Power Factor | 0.93 |
| Efficiency | 87% |
| Rated OCV | 73.3 V |
| Rated Output Current | 30 ~ 400 A |
| Rated Output Voltage | 12 ~ 45 V (Precision at 0.1V) |
| Duty Cycle | 400A 100% @ 40℃ |
| Applicable Material | Carbon Steel / Stainless Steel |
| Welding Process | MMA, Synergic MIG N:Single/Double pulse for Carbon Steel/Stainless Steel |
| Wire Diameter | φ 0.8 / 1.0 / 1.2 / 1.6 mm |
| Welding Operation Mode | 2T / 4T / Special 4T / Spot Welding |
| Parameter Channel | 50 (Standard) |
| Inductance Scope (Soft / Strong Arc) | -9 ~ +9 |
| Push-pull Torch Function | Yes |
| Digital Meter on Wire-feeder | Yes |
| Electromagnetic Compatibility | IEC60974:10 EMS |
| Insulation Grade | H |
| Ingress Protection | IP 23S |
| Protection Against Lightening | Class D (6000V/3000A) |
| Working Temperature & Humidity | -39℃ ~ +50℃; Humidity ≤ 95% |
| Water Cooler (Optional) | Rated Power 260W Rated Voltage AC 400V Volume of Cooling Water 10L Flow of Cooling Water 3.5L / min Max Pump Head 30m Flow Alarm Yes |
