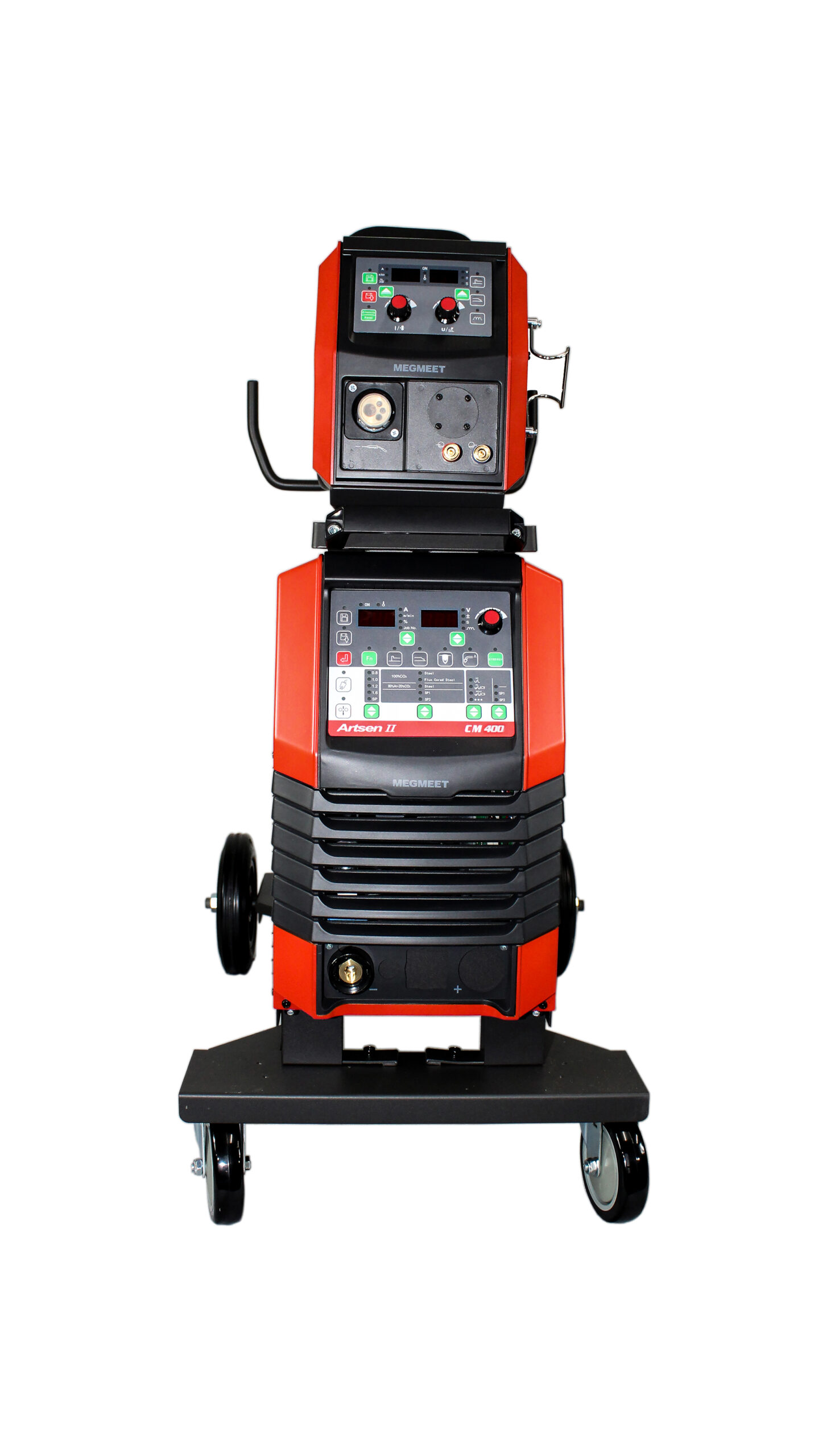

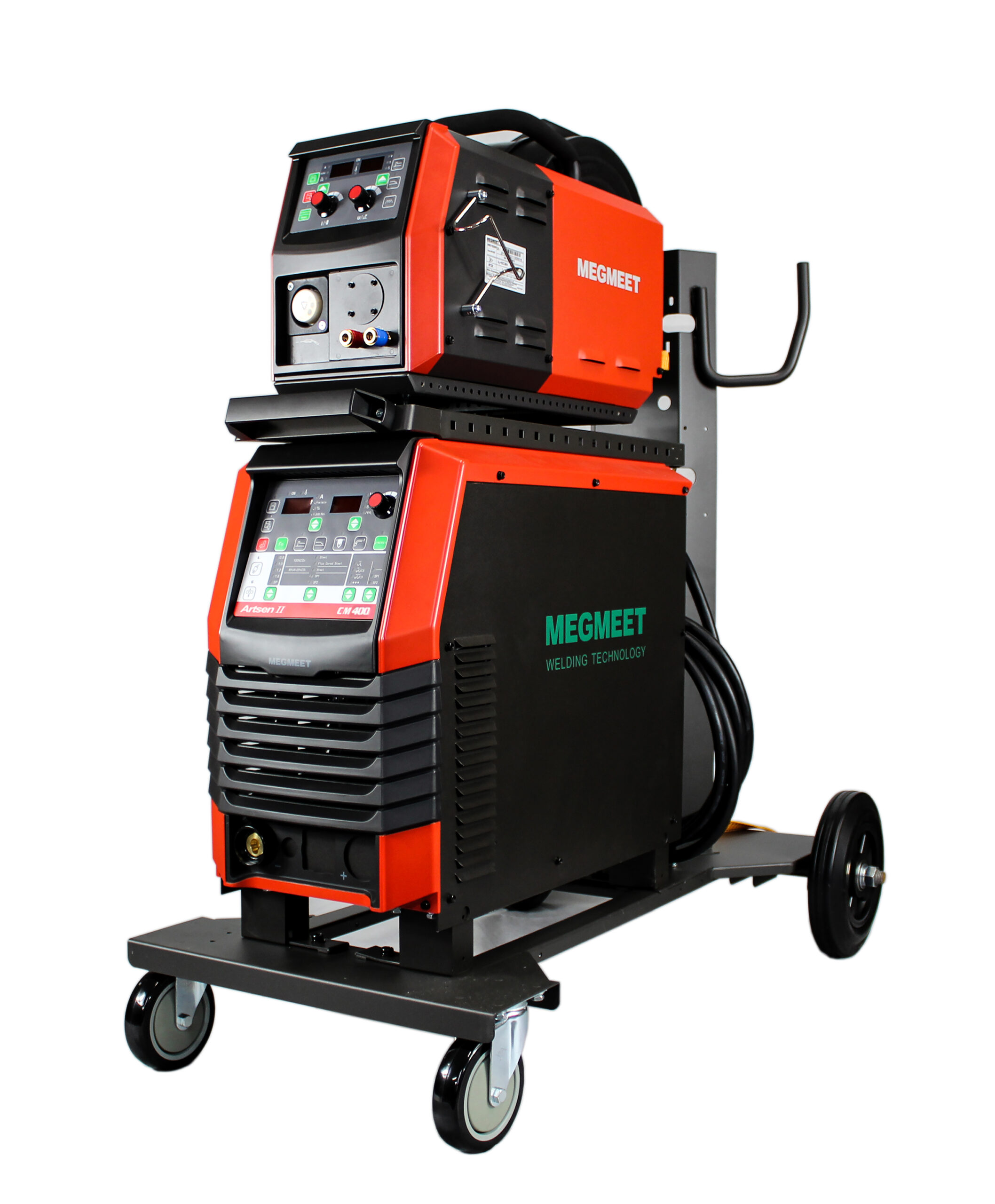

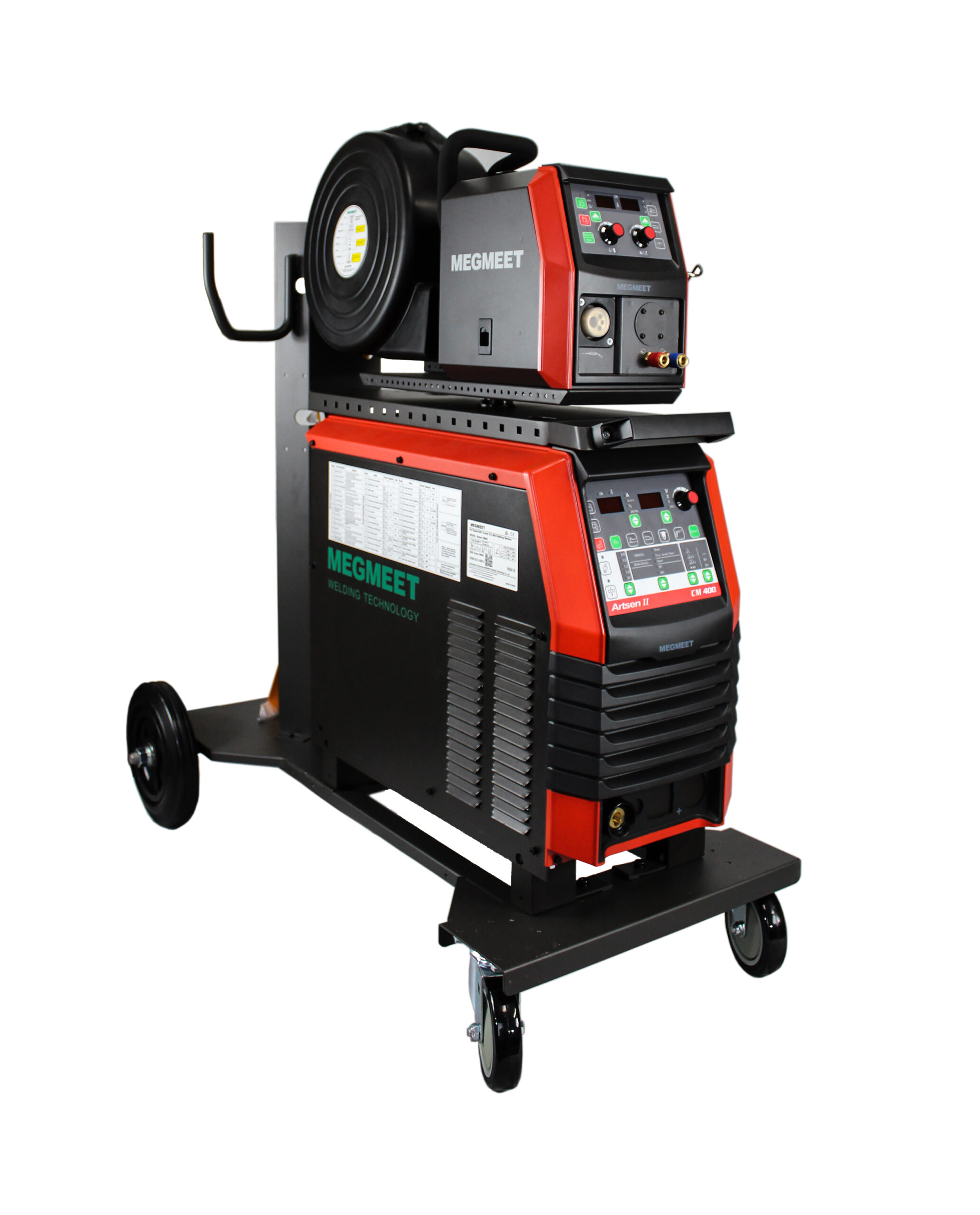

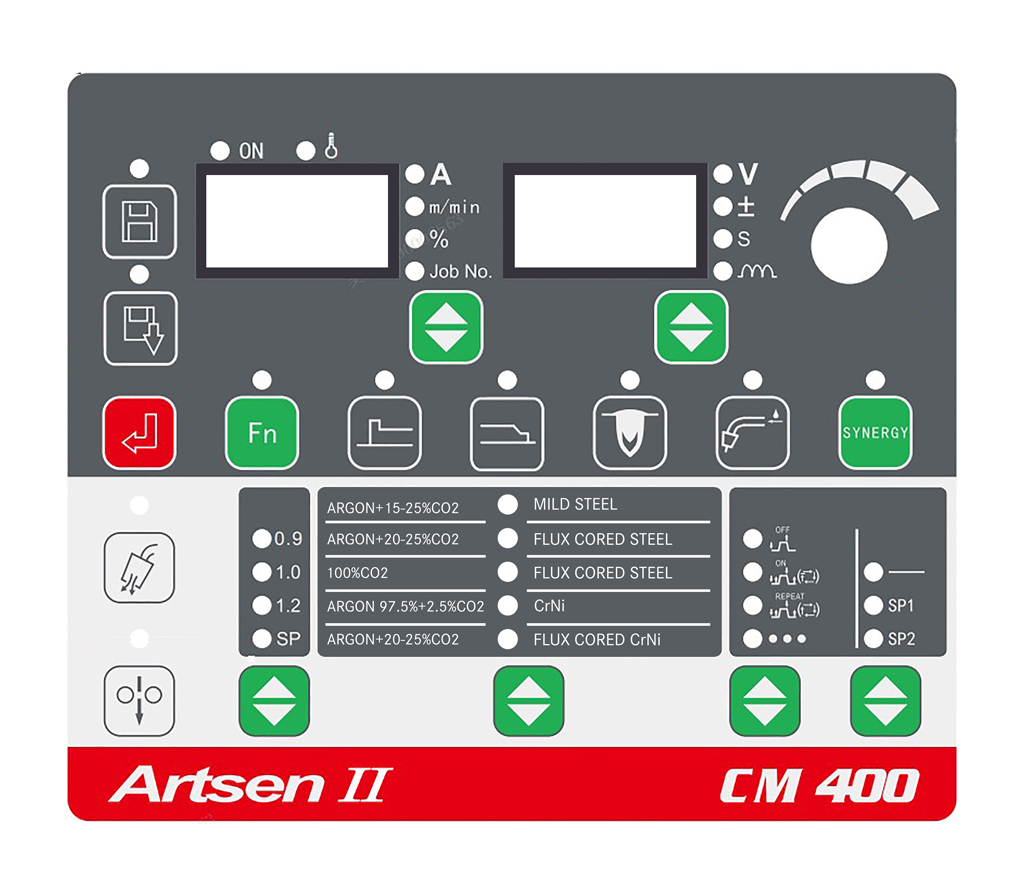

Part Number : R13400870P Full-function MMA, MIG/MAG Welder for Carbon Steel and Stainless Steel Independent operation panel and display in the wire-feeder, allowing convenient check and adjustment of welding parameters. Synchronous driving with 2 motors, flexible torch configuration, expansion capability with mid-way wire-feeder and push-pull torch. Practical for welding operation of long distance and in narrow space. Professional performance for carbon steel material. Up to 50 channels with non-delay switch; up to 200 defect records bringing higher convenience to identify the on-site troubles. Abundant internal menu and specification opened to adjustment, meeting extreme welding demands. Diversified expert system. Full digital…
| Weight | 52 kg |
|---|---|
| Dimensions | 62 × 30 × 48 mm |
| Standard Features | Arc Force, Creator Fill, Digital Display, Geared Wire Drive, Hot Start, Inductance Control, Memory Channels, Power Factor Correction, Push Pull Gun Ready, Separate Wire Feeder |
| Input Power Supply | 415V THREE PHASE |
| Machine Welding Processes | DC SCRATCH START TIG, MIG, MIG (SYNERGIC), STICK |
| Welding Plate Thickness MIG | |
| Plate Thickness Stick | UP TO 20MM |
| Market Segment | INDUSTRIAL |
| Welding Material Types |
Control Mode Full Digital Control
Rated Input Voltage AC 3PH 380V +/-25% (3PH 285V ~ 3PH 475V)
Input Frequency 30 ~80 HZ
Rated Input Power 15 KVA/12.7KW
Power Factor 0.93
Efficiency 87%
Rated OCV 63.7 V
Rated Output Current 30 ~ 400 A
Rated Output Voltage 12 ~ 45 V (Precision at 0.1V)
Duty Cycle 350A 100% @ 40℃
Applicable Material Carbon Steel
Welding Process MIG / MAG
Wire Diameter φ 0.8 / 1.0 / 1.2mm
Welding Operation Mode 2T / 4T / Special 4T / Spot Welding
Parameter Channel 50 (Standard)
Inductance Scope (Soft / Strong Arc) -9 ~ +9
Push-pull Torch Function Yes
Digital Meter on Wire-feeder Yes
Cooling Mode Air Cool; Water Cool (Optional)
Electromagnetic Compatibility IEC60974:10 EMS
Insulation Grade H
Ingress Protection IP 23S
Protection Against Lightening Class D (6000V/3000A)
Working Temperature & Humidity -39℃ ~ +50℃; Humidity ≤ 95%;
Dimension (L / W / H) 620 x 300 × 480 mm
Gross Weight 52 KG
Wire Feeder Weight 14.5 KG
Water Cooler (Optional)
Rated Power 260W
Rated Voltage AC 400V
Volume of Cooling Water 10L
Flow of Cooling Water 3.5L / min
Max Pump Head 30m
Flow Alarm Yes
