Control Mode Full Digital Control
Rated Input Voltage AC 3PH 380V +/-25% (3PH 285V ~ 3PH 475V)
Input Frequency 45 ~ 65 HZ
Rated Input Power 24 KVA
Power Factor 0.93
Efficiency 87%
Rated OCV 85 V
Rated Output Current 30 ~ 500 A
Rated Output Voltage 12 ~ 45 V (Precision at 0.1V)
Duty Cycle
500A / 39V 60% @ 40℃
387A / 33.5V 100% @ 40℃
Applicable Material Q : Carbon Steel / Stainless Steel / Aluminum Alloy
Welding Process Q : MIG / MAG ; Low-spatter; Short-arc Pulse
Wire Diameter φ 0.8 / 0.9 / 1.0 / 1.2 / 1.6mm
Welding Operation Mode 2T / 4T / Special 4T / Spot Welding / Leaping Welding
Parameter Channel 50 (Standard)
Inductance Scope (Soft / Strong Arc) -7 ~ +7
Push-pull Torch Function Yes
Digital Meter on Wire-feeder Yes
Cooling Mode Air Cool; Water Cool (Optional)
Electromagnetic Compatibility IEC60974:10 EMS
Insulation Grade H
Ingress Protection IP 23S
Protection Against Lightening Class D (6000V/3000A)
Working Temperature & Humidity -39℃ ~ +50℃; Humidity ≤ 95%;
Dimension (L / W / H) 620 x 300 × 480 mm
Gross Weight 52 KG
Wire Feeder Weight 14.5 KG
Water Cooler (Optional)
Rated Power 260W
Rated Voltage AC 400V
Volume of Cooling Water 10L
Flow of Cooling Water 3.5L / min
Max Pump Head 30 m
Flow Alarm Yes

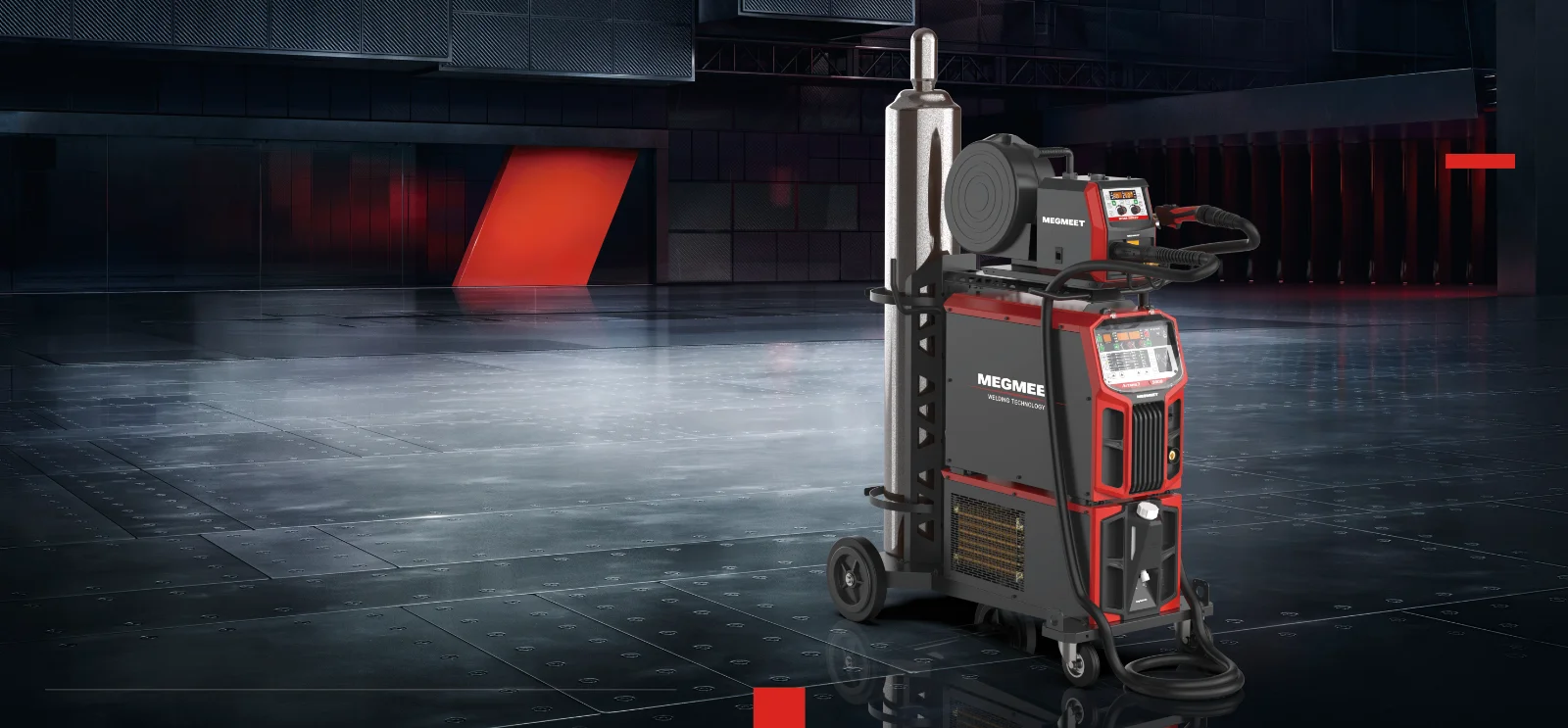

- ARTSEN PLUS 500Q Power Source
- Dual-drive PLUS Separate Wire Feeder
- MB 36 3 MT Binzel Mig Torch
- Gas-Cooled 70mm2 Cable Group 10MT with Gas Hose
- Artsen Trolley
- 5MT 70mm2 Earth Lead With Clamp
- Outlaw Argon Regulator
- 4.8mt Primary Input Lead
- Operation Manual
Note : Optional Feed Roll Kit For Aluminium required
